SIZE SPECS:
Tire Size
11R22.5
Tread Depth (32nds)
18
Overall Width
11.4 IN
Overall Diameter
40.2 IN
Overall Width Loaded
12.5 IN
load specs:
Ply/StarRating
14
Load Range
G
Max Tire Load Dual
5675 LBS
Max Tire Load Single
6175 LBS
Gross Weight
113.8 LBS
GENERAL SPECS:
Article Number
233738
Max Speed
75 MPH
Revolutions Per Mile
516.0
Application
truckload, less than truckload, long haul, superregional
SIZE SPECS:
Tire Size
11R22.5
Tread Depth (32nds)
19
Overall Width
11.1 IN
Overall Diameter
41.4 IN
Overall Width Loaded
12.5 IN
LOAD SPECS:
Ply/StarRating
16
Load Range
H
Max Tire Load Dual
6005 LBS
Max Tire Load Single
6614 LBS
Gross Weight
120 LBS
GENERAL SPECS:
Article Number
3003109
Max Speed
75 MPH
Revolutions Per Mile
503.0
Application
truckload, less than truckload, long haul, superregional
SIZE SPECS:
Tire Size
11R22.5
Tread Depth (32nds)
19
Overall Width
11.3 IN
Overall Diameter
41.3 IN
Overall Width Loaded
12.5 IN
LOAD SPECS:
Ply/StarRating
16
Load Range
H
Max Tire Load Dual
6005 LBS
Max Tire Load Single
6610 LBS
Gross Weight
111.0 LBS
GENERAL SPECS:
Article Number
20297
Max Speed
75 MPH
Revolutions Per Mile
503.0
Application
truckload, less than truckload, long haul, superregional
SIZE SPECS:
Tire Size
11R22.5
Tread Depth (32nds)
18
Overall Width
11.4 IN
Overall Diameter
41.3 IN
Overall Width Loaded
12.5 IN
LOAD SPECS:
Ply/StarRating
16
Load Range
H
Max Tire Load Dual
6005 LBS
Max Tire Load Single
6610 LBS
Gross Weight
119 LBS
GENERAL SPECS:
Article Number
62130936
Max Speed
75 MPH
Revolutions Per Mile
503
Application
truckload, less than truckload, long haul, superregional

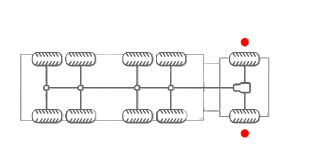

11R22.5 STEERS
SIZE SPECS:
Tire Size
11R22.5
Tread Depth (32nds)
18
Overall Width
11.1 IN
Overall Diameter
41.3 IN
Overall Width Loaded
12.5 IN
LOAD SPECS:
Ply/StarRating
16
Load Range
G
Max Tire Load Dual
5840 LBS
Max Tire Load Single
6175 LBS
Gross Weight
118.4 LBS
GENERAL SPECS:
Article Number
20297
Max Speed
75 MPH
Revolutions Per Mile
497
Application
truckload, less than truckload, long haul, superregional
SIZE SPECS:
Tire Size
11R22.5
Tread Depth (32nds)
19
Overall Width
11.1 IN
Overall Diameter
41.4 IN
Overall Width Loaded
12.5 IN
LOAD SPECS:
Ply/StarRating
16
Load Range
H
Max Tire Load Dual
6005 LBS
Max Tire Load Single
6614 LBS
Gross Weight
120 LBS
GENERAL SPECS:
Article Number
3003109
Max Speed
75 MPH
Revolutions Per Mile
503.0
Application
truckload, less than truckload, long haul, superregional
